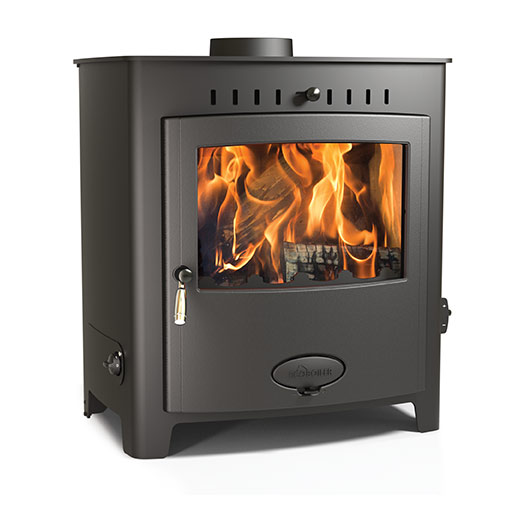

Arada Ecoboiler 25HE - Series 5

THIS STOVE IS NO LONGER MANUFACTURED

Online documentation is available at:

https://www.aradastoves.com/docs/stoves/eb25he-g5/

Providing more than just superior performance, the Ecoboiler HE (high efficiency) has a large fire door glass and soft curved lines, offering an attractive focal point for any living area. Regardless of whether you burn wood or solid fuel, these boiler stoves have the technology to keep your home warm and cosy. On top of its stylish appearance, discreet thermostatic control and three bar operating pressure, its ability to produce 50% more heat to water than other boiler stoves ensures the Ecoboiler is the ultimate heating companion.

  • Output to water 22.5kW
  • Log length 450mm
  • Width 678mm
  • Height 725mm
  • Depth 498mm



  • 7 year guarantee
  • Easily accessible water sensor for trouble-free maintenance
  • Preheated airwash system for clean glass
  • Stainless steel ash pan and baffle
  • Burns wood or solid fuel
  • Compact space-saving design
  • Discreetly positioned thermostatic control fitted as standard
  • ‘Easy Boost’ system
  • Large, externally controlled riddling grate
  • Flue Exhaust Diversion system to improve performance
  • Primary and secondary burn to improve efficiency
  • Suitable for installation in an indirect/ open-vented central heating system
  • Up to 3 bar operating pressure
  • Top or rear flue outlet
  • Direct air supply compatible
  • Height adjusting legs as standard

View the Exploded Diagram

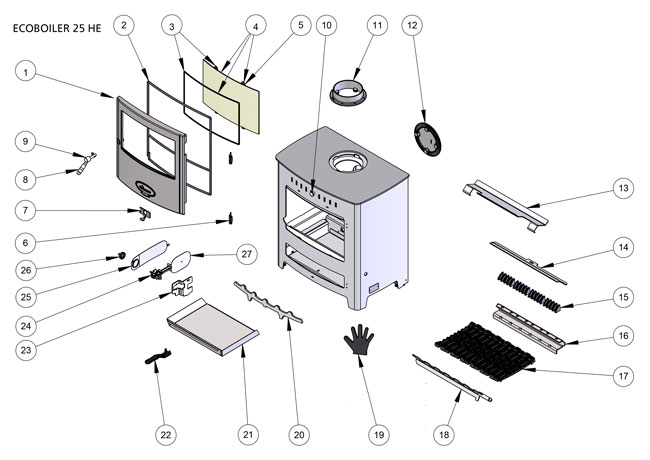

Exploded Diagram for Arada Ecoboiler 25HE - Series 5

All Spares for Arada Ecoboiler 25HE - Series 5



Ref
Description
Part Code
Price
Qty in Stove
Stock
Qty
Buy Now
1
Fire Door
Part Code
AFS2930
Price (inc VAT)
£397.52
Qty in Stove
1
(1 available)
2
Arada Rope Kit 3
Part Code
ARA019
Price (inc VAT)
£35.42
Qty in Stove
1
(Please call our sales team for details)

3
Gasket And Glass Clips
Part Code
AFS1361
Price (inc VAT)
£17.11
Qty in Stove
1
(56 available)
4
Glass Kit
Part Code
AFS1423
Price (inc VAT)
£184.16
Qty in Stove
1
(26 available)
5
Glass Clips
Part Code
AFS1010
Price (inc VAT)
£7.15
Qty in Stove
1
(93 available)
6
Hinge (right Hand)
Part Code
AFS2775
Price (inc VAT)
£19.45
Qty in Stove
2
(111 available)
7
Primary Air Controls
Part Code
AFS1369
Price (inc VAT)
£31.75
Qty in Stove
1
(4 available)
8
Handle (stainless Steel)
Part Code
AFS3580
Price (inc VAT)
£18.83
Qty in Stove
1
(11 available)
9
Handle Assembly (stainless Steel Handle)
Part Code
AFS3585
Qty in Stove
1
(Please call our sales team for details)

10
Airwash Knob
Part Code
AFS1405
Price (inc VAT)
£8.33
Qty in Stove
1
(44 available)
11
6 Inch Flue Spigot
Part Code
AFS011
Price (inc VAT)
£57.08
Qty in Stove
1
(19 available)
12
6 Inch Hot Plate
Part Code
AFS012
Price (inc VAT)
£52.52
Qty in Stove
1
(6 available)
13
Throat Plate
Part Code
AFS2815
Price (inc VAT)
£60.60
Qty in Stove
1
(58 available)
14
Boiler Shelf Access Plate
Part Code
AFS3375
Price (inc VAT)
£30.29
Qty in Stove
1
(41 available)
15
Fire Bed Surround
Part Code
AFS1380
Price (inc VAT)
£13.82
Qty in Stove
4
(225 available)
16

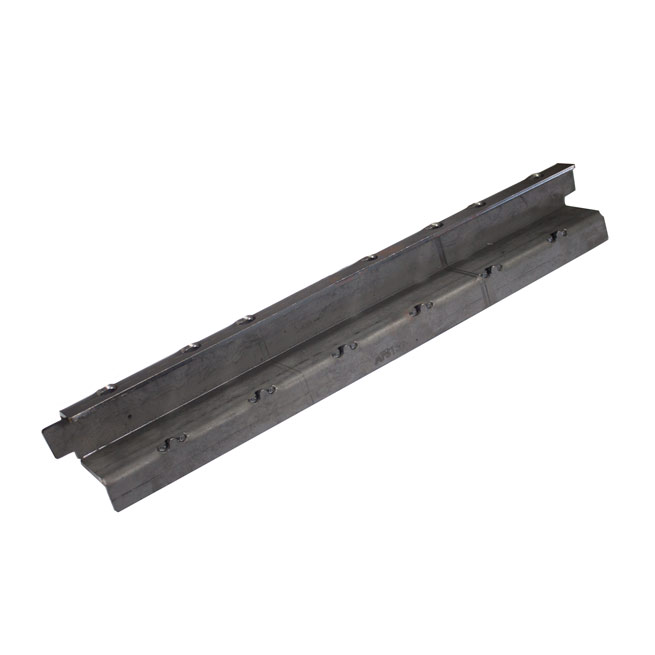

Grate Bar Support
Part Code
AFS1320
Price (inc VAT)
£40.09
Qty in Stove
1
(32 available)
17
Grate Bar
Part Code
AFS002
Price (inc VAT)
£18.64
Qty in Stove
13
(38 available)
18
Comb And Extension
Part Code
AFS2820
Price (inc VAT)
£39.91
Qty in Stove
1
(30 available)
19
Arada Hot Glove
Part Code
ARA010
Price (inc VAT)
£10.68
Qty in Stove
1
(91 available)
20
Fuel Retainer
Part Code
AFS1810
Price (inc VAT)
£33.88
Qty in Stove
1
(63 available)
21
Ash Pan
Part Code
AFS052A
Price (inc VAT)
£29.41
Qty in Stove
1
(7 available)
22
Operating Tool
Part Code
AFS008
Price (inc VAT)
£15.30
Qty in Stove
1
(125 available)
23
Thermostat Mounting Bracket
Part Code
AFS1800
Price (inc VAT)
£12.32
Qty in Stove
1
(Please call our sales team for details)

24
Thermostat
Part Code
AFS2740
Price (inc VAT)
£124.67
Qty in Stove
1
(Please call our sales team for details)

25
Thermo Panel
Part Code
AFS2755
Price (inc VAT)
£20.84
Qty in Stove
1
(Please call our sales team for details)

26
Thermostat Knob
Part Code
AFS1379
Price (inc VAT)
£12.02
Qty in Stove
1
(5 available)
27
Air Damper Plate
Part Code
AFS3510
Price (inc VAT)
£30.13
Qty in Stove
1
(2 available)
28
Roller Catch Components
Part Code
AFS4567
Price (inc VAT)
£13.69
Qty in Stove
1
(19 available)
29
Ecoboiler 25 he g5 boiler jacket assembly
Part Code
AFS4724
Price (inc VAT)
£2,340.00
Qty in Stove
1
(Please call our sales team for details)
