£0.00 inc VAT

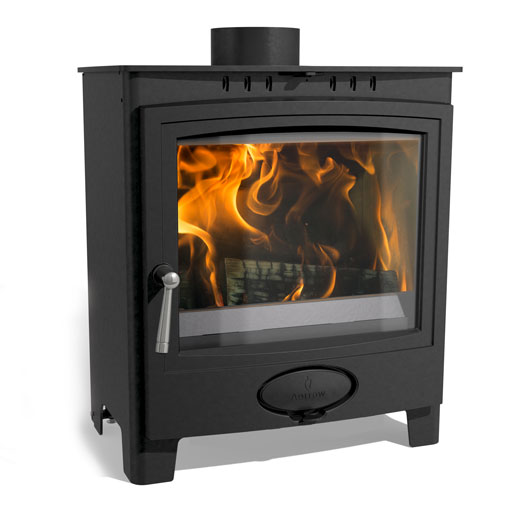

Arada Ecoburn Plus 5 Widescreen - Series 1, Serial Numbered

Featuring a 4.9kW nominal output, the Ecoburn Plus 5 Widescreen lives up to its name with an extra wide viewing glass. Whilst its flames are the centre of attention, this stove still plays host to all the best features in Arada's Ecoburn Plus range as well as a larger firebox with more space for your fuel.Suitable for UK Smoke Control Areas.

Features

  • Lifetime guarantee
  • Preheated airwash system for clean glass
  • Stainless steel ash pan and throat plate
  • Burns wood or solid fuel
  • Approved for use in Smoke Control Areas
  • Externally controlled riddling grate
  • Large fire viewing window
  • Patented Flexifuel System
  • Primary and secondary burn to improve efficiency
  • Top or rear flue outlet
  • Heat shield for closer positioning to combustibles
  • Height adjusting legs as standard

Specifications

  • Output: 4.9kW
  • Log length: 380mm
  • Width: 541mm
  • Height: 600mm
  • Depth: 365mm

View the Exploded Diagram

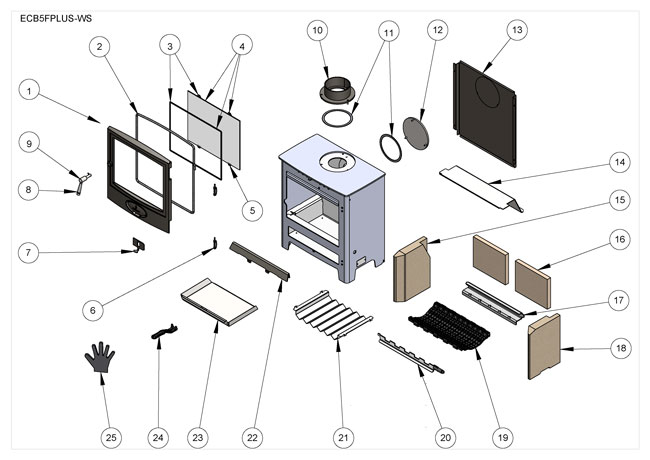

Exploded Diagram for Arada Ecoburn Plus 5 Widescreen - Series 1, Serial Numbered

All Spares for Arada Ecoburn Plus 5 Widescreen - Series 1, Serial Numbered



Ref
Description
Part Code
Price
Qty in Stove
Stock
Qty
Buy Now
1
Complete Fire Door
Part Code
AFS3950
Price (inc VAT)
£344.83
Qty in Stove
1
(2 available)
2
Arada Rope Kit 2
Part Code
ARA014
Price (inc VAT)
£35.42
Qty in Stove
1
(20 available)
3
Gasket And Glass Clips
Part Code
AFS1361
Price (inc VAT)
£17.11
Qty in Stove
1
(84 available)
4
Glass Kit
Part Code
AFS3955
Price (inc VAT)
£102.91
Qty in Stove
1
(9 available)
5
Glass Clips
Part Code
AFS1010
Price (inc VAT)
£7.15
Qty in Stove
1
(129 available)
6
Hinge (right Hand)
Part Code
AFS2775
Price (inc VAT)
£19.45
Qty in Stove
2
(111 available)
7

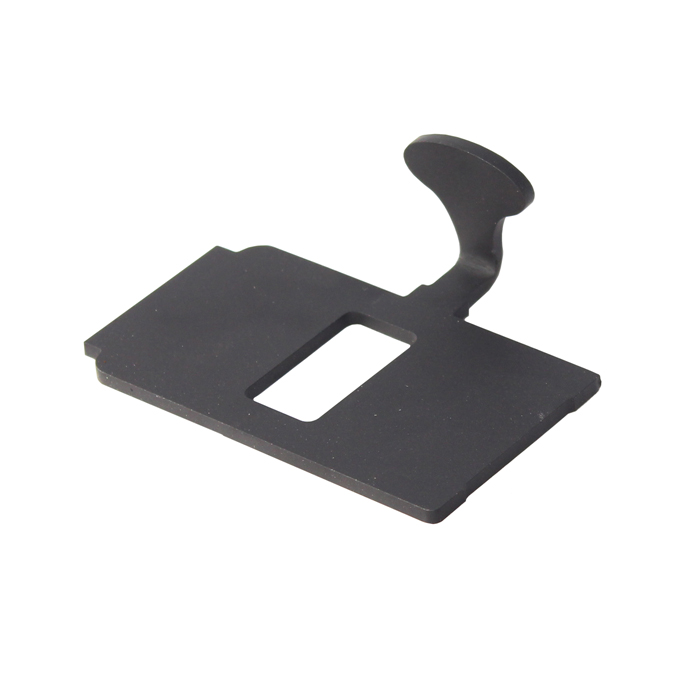

Primary Air Controls
Part Code
AFS2680
Price (inc VAT)
£26.98
Qty in Stove
1
(8 available)
8
Handle (stainless Steel)
Part Code
AFS3575
Price (inc VAT)
£22.58
Qty in Stove
1
(14 available)
9
Handle Assembly (stainless Steel)
Part Code
AFS3550
Price (inc VAT)
£57.20
Qty in Stove
1
(16 available)
10
5" Spigot
Part Code
AFS3870
Price (inc VAT)
£53.89
Qty in Stove
1
(11 available)
11
Gasket
Part Code
VFS063
Price (inc VAT)
£6.92
Qty in Stove
1
(55 available)
12
Hot Plate
Part Code
AFS3875
Price (inc VAT)
£34.75
Qty in Stove
1
(14 available)
13
Rear Heat Shield
Part Code
AFS3995
Price (inc VAT)
£68.08
Qty in Stove
1
(2 available)
14
Throat Plate
Part Code
AFS3975
Price (inc VAT)
£49.06
Qty in Stove
1
(3 available)
15
Liner 315 X 235 X 50 Shaped Lh
Part Code
AFS4210
Price (inc VAT)
£40.02
Qty in Stove
1
(46 available)
16
Liner 249 X 200 X 25
Part Code
AFS3005
Price (inc VAT)
£17.47
Qty in Stove
2
(Please call our sales team for details)

17
Grate Bar Support (gbs004)
Part Code
AFS1330
Price (inc VAT)
£30.89
Qty in Stove
1
(2 available)
18
Liner 315 X 235 X 50 Shaped Rh
Part Code
AFS4215
Price (inc VAT)
£40.02
Qty in Stove
1
(49 available)
19
Flexi Grate Bar - Small
Part Code
AFS2375
Price (inc VAT)
£15.37
Qty in Stove
11
(48 available)
20
Comb With Extension
Part Code
AFS3970
Price (inc VAT)
£66.04
Qty in Stove
1
(Please call our sales team for details)

21
Base Heat Shield
Part Code
AFS3990
Price (inc VAT)
£25.04
Qty in Stove
1
(2 available)
22
Fuel Retainer
Part Code
AFS4020
Price (inc VAT)
£29.54
Qty in Stove
1
(2 available)
23
Ash Pan
Part Code
AFS3965
Price (inc VAT)
£29.27
Qty in Stove
1
(3 available)
24
Operating Tool
Part Code
AFS008
Price (inc VAT)
£15.30
Qty in Stove
1
(138 available)
25
Arada Hot Glove
Part Code
ARA010
Price (inc VAT)
£10.68
Qty in Stove
1
(300 available)

Optional Extras for Arada Ecoburn Plus 5 Widescreen - Series 1, Serial Numbered

1
Stand For Ecb9fplus
Part Code
STAND-ECB9FPLUS
Qty in Stove
1
(Please call our sales team for details)

2
Logstore For Ecb9fplus
Part Code
LOG-ECB9FPLUS
Qty in Stove
1
(Please call our sales team for details)

4
5-6 Flue Increasing Adapter
Part Code
ADP56
Price (inc VAT)
£89.50
Qty in Stove
1
(9 available)
6

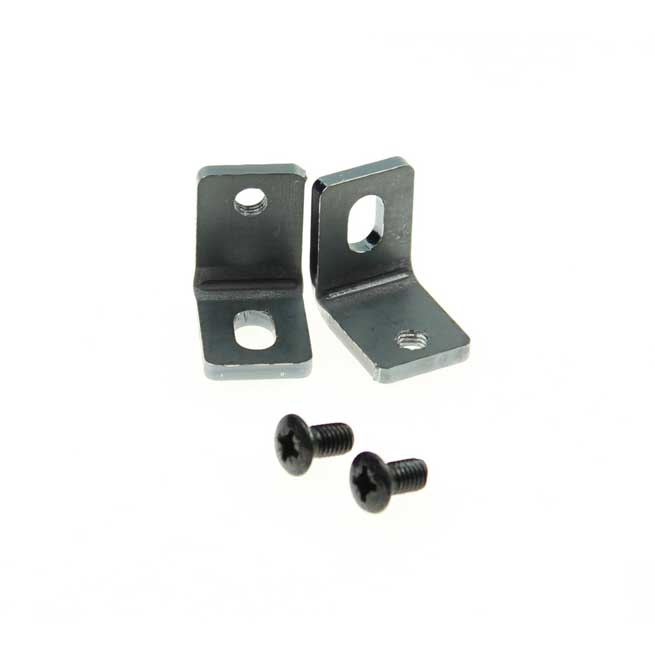

Bolt Down Brackets (pair)
Part Code
AFS3645
Price (inc VAT)
£27.30
Qty in Stove
1
(6 available)
7

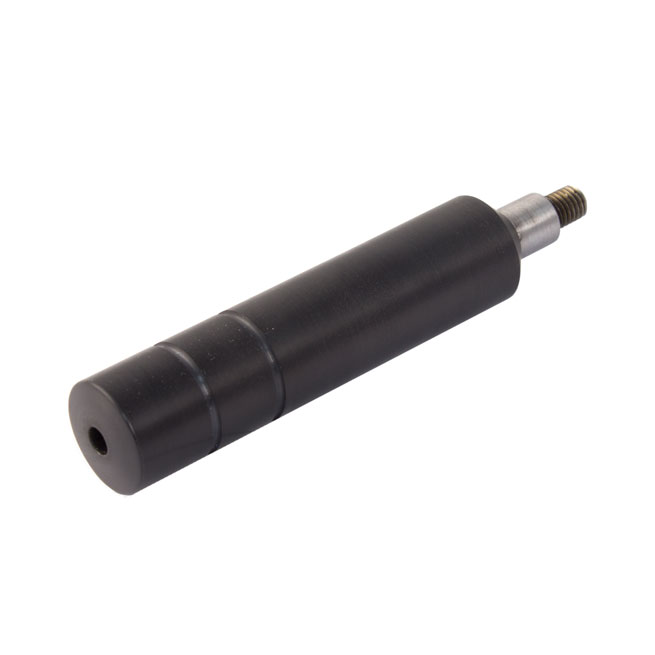

Safety Handle
Part Code
AFS3165
Price (inc VAT)
£57.25
Qty in Stove
1
(51 available)
