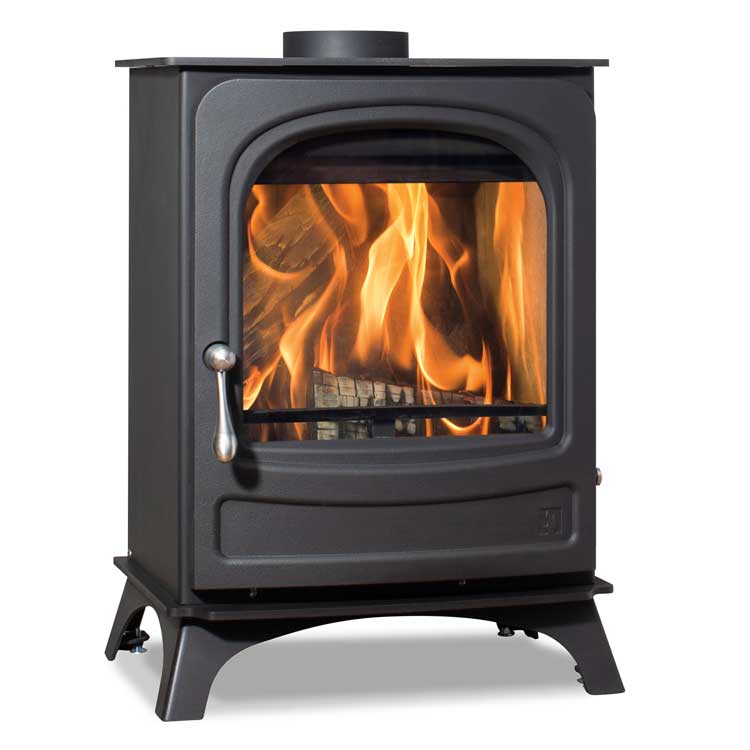

Arada Holborn 5 Stove

  • Output 4.9kW
  • Energy Efficiency Class A
  • Width 484mm
  • Height 635mm
  • Depth 370mm
  • Log Length 300mm
  • Lifetime guarantee
  • Better than Ecodesign standards when burning wood or solid fuel
  • Non-smoker paint
  • Approved for use in Smoke Control Areas
  • Stainless steel ash pan and throat plate
  • Top or rear 127mm (5") flue outlet
  • Direct air compatible
  • Preheated airwash system for clean glass
  • Externally controlled riddling grate
  • Height adjusting legs as standard
  • Optional rear heat shield for closer positioning to combustibles

View the Exploded Diagram

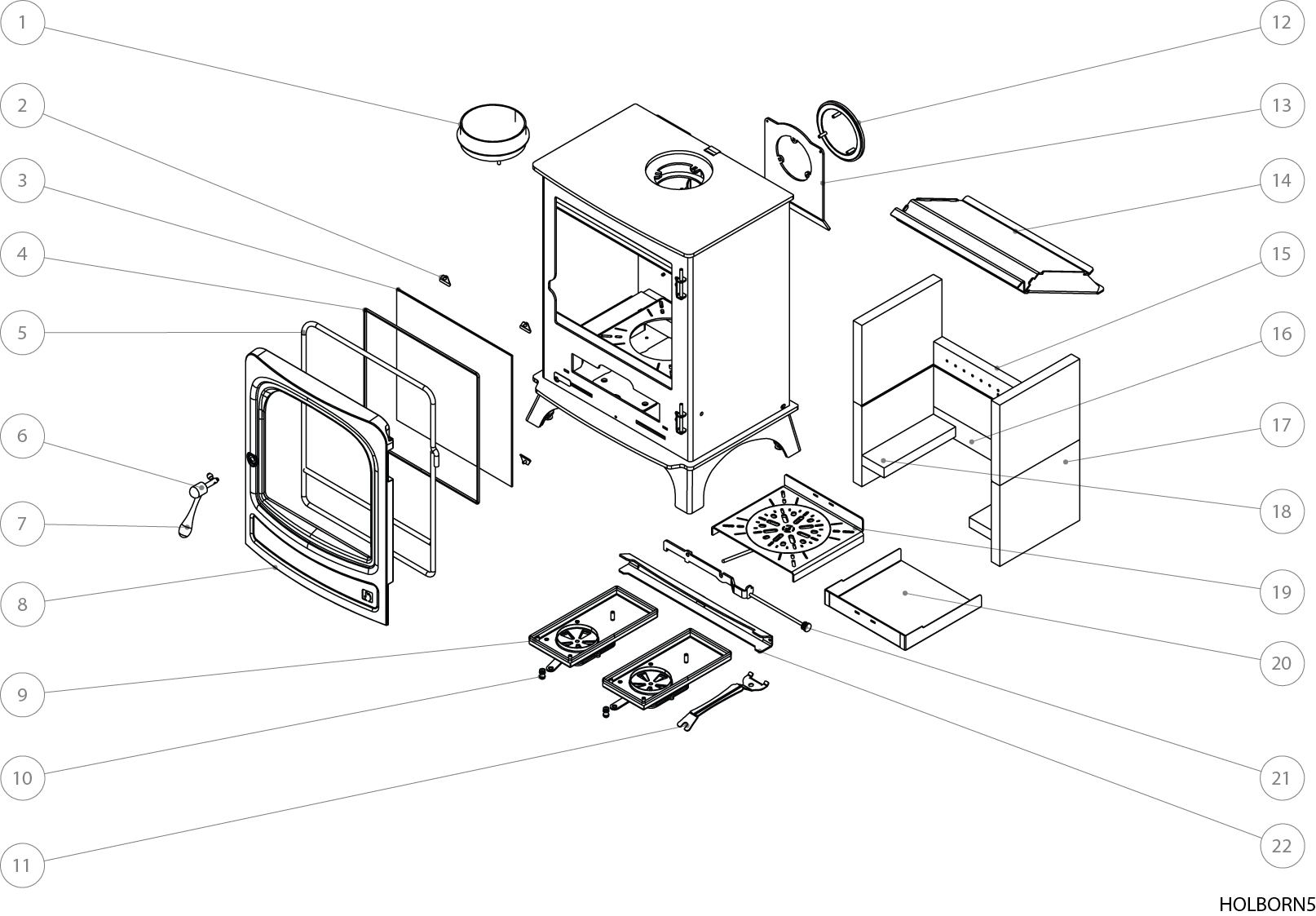

Exploded Diagram for Arada Holborn 5 Stove

All Spares for Arada Holborn 5 Stove



Ref
Description
Part Code
Price
Qty in Stove
Stock
Qty
Buy Now
1
5 Inch Flue Spigot
Part Code
AFS4441
Price (inc VAT)
£41.05
Qty in Stove
1
(9 available)
2
Glass Clips
Part Code
AFS1010
Price (inc VAT)
£5.46
Qty in Stove
4
(98 available)
3
Glass kit
Part Code
AFS4573
Price (inc VAT)
£67.00
Qty in Stove
1
(3 available)
4
Gasket And Glass Clips
Part Code
AFS1361
Price (inc VAT)
£13.04
Qty in Stove
1
(Please call our sales team for details)

5
Arada Rope Kit 2
Part Code
ARA014
Price (inc VAT)
£26.99
Qty in Stove
1
(26 available)
6
Handle assembly
Part Code
AFS4576
Price (inc VAT)
£44.86
Qty in Stove
1
(Please call our sales team for details)

7
Handle (stainless steel)
Part Code
AFS4578
Price (inc VAT)
£19.58
Qty in Stove
1
(Please call our sales team for details)

8
Complete fire door
Part Code
AFS4572
Price (inc VAT)
£243.76
Qty in Stove
1
(1 available)
9
Primary / secondary air slider
Part Code
AFS4575
Price (inc VAT)
£46.52
Qty in Stove
2
(1 available)
10
Air control knob
Part Code
AFS4584
Price (inc VAT)
£9.60
Qty in Stove
2
(6 available)
11
Operating tool
Part Code
AFS4583
Price (inc VAT)
£11.66
Qty in Stove
1
(13 available)
12
5" hot plate cover
Part Code
AFS4582
Price (inc VAT)
£13.07
Qty in Stove
1
(Please call our sales team for details)

13
Hotplate
Part Code
AFS4446
Price (inc VAT)
£26.48
Qty in Stove
1
(5 available)
14
Throat Plate
Part Code
AFS4553
Price (inc VAT)
£52.39
Qty in Stove
1
(13 available)
15
Rear upper liner 378 x 165 x 25 vee cut
Part Code
AFS4577
Price (inc VAT)
£25.50
Qty in Stove
1
(10 available)
16
Rear Lower Liner 378 X 53 X 25
Part Code
AFS4555
Price (inc VAT)
£7.58
Qty in Stove
1
(8 available)
17
Side liner 235x205x25
Part Code
AFS4581
Price (inc VAT)
£14.65
Qty in Stove
4
(20 available)
18
Base Liner 210 X 65 X 25
Part Code
AFS4557
Price (inc VAT)
£7.30
Qty in Stove
2
(8 available)
19
Grate
Part Code
AFS4574
Price (inc VAT)
£63.82
Qty in Stove
1
(Please call our sales team for details)

20
Ash Pan
Part Code
AFS4563
Price (inc VAT)
£16.40
Qty in Stove
1
(Please call our sales team for details)

21
Side riddle arm
Part Code
AFS4580
Price (inc VAT)
£15.13
Qty in Stove
1
(21 available)
22
Fuel retainer
Part Code
AFS4579
Price (inc VAT)
£17.90
Qty in Stove
1
(Please call our sales team for details)

23
Roller Catch Components
Part Code
AFS4569
Price (inc VAT)
£10.43
Qty in Stove
1
(9 available)

Optional Extras for Arada Holborn 5 Stove

1
Multifuel Kit for ECB5-S3 / HOLBORN5
Part Code
AFS4547
Qty in Stove
1
(Please call our sales team for details)

2
Heat Shield for ECB5-S3 / HOLBORN5
Part Code
AFS4545
Qty in Stove
1
(Please call our sales team for details)

3
Direct Air Kit for ECB5-S3 / HOLBORN5
Part Code
AFS4543
Qty in Stove
1
(Please call our sales team for details)

4
Stand for ECB5-S3 / HOLBORN5
Part Code
STAND-5
Qty in Stove
1
(Please call our sales team for details)

5
Logstore for ECB5-S3 / HOLBORN5
Part Code
LOG-5
Qty in Stove
1
(Please call our sales team for details)
