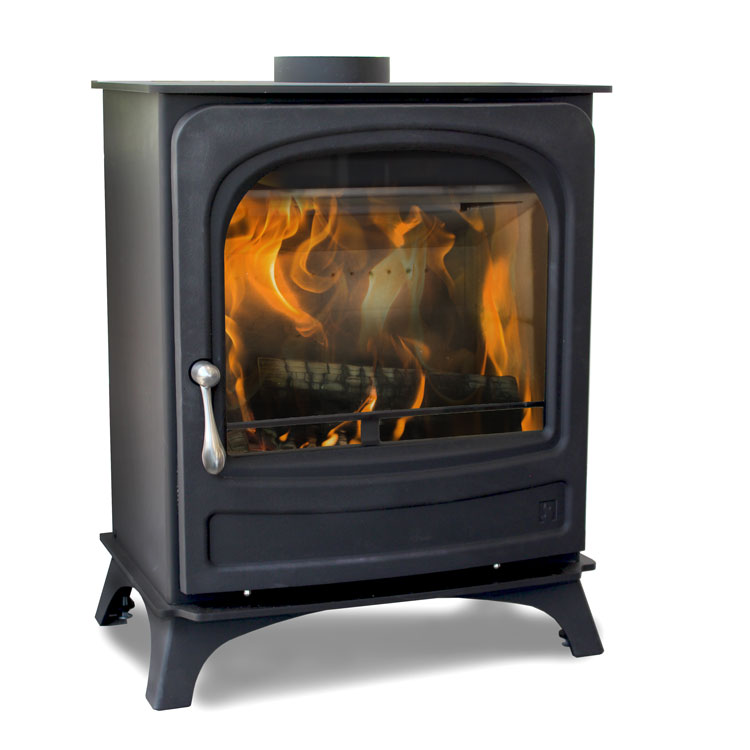

Arada Holborn 5 Widescreen
Output
4.9kW
Energy Efficiency Class
A+
Width
550mm
Height
650mm
Depth
370mm
Log Length
375mm
Lifetime guarantee
Better than Ecodesign standards when burning wood or solid fuel
Non-smoker paint
Approved for use in Smoke Control Areas
Stainless steel ash pan and throat plate
Top or rear 127mm (5") flue outlet
Direct air compatible
Preheated airwash system for clean glass
Externally controlled riddling grate
Height adjusting legs as standard
Optional rear heat shield for closer positioning to combustibles
View the Exploded Diagram

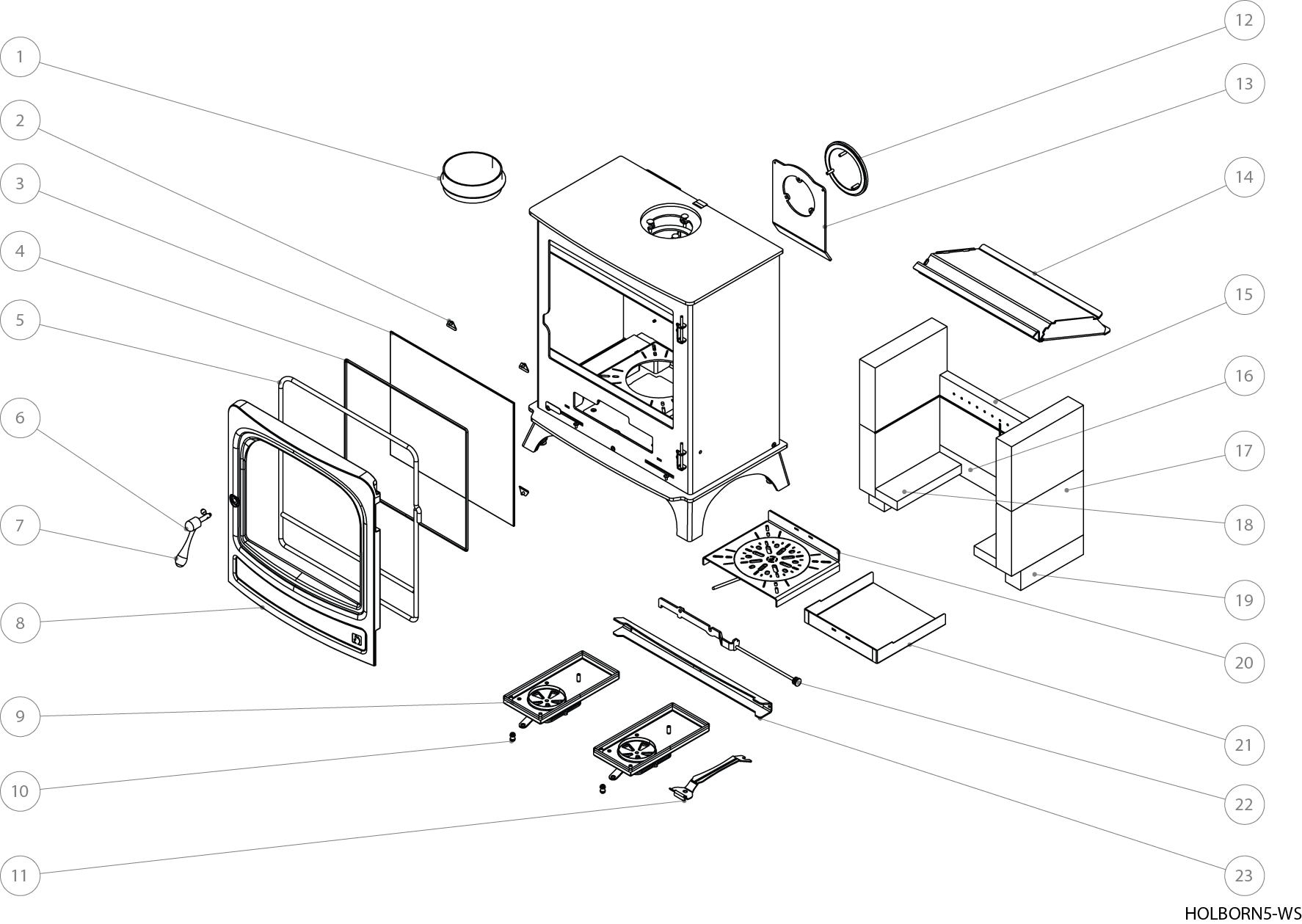

Exploded Diagram for Arada Holborn 5 Widescreen
All Spares for Arada Holborn 5 Widescreen
Ref
Description
Part Code
Price
Qty in Stove
Stock
Qty
Buy Now
1
5 Inch Flue Spigot
Part Code
AFS4441
Price (inc VAT)
£53.89
Qty in Stove
1
(10 available)
buy now
2
Glass Clips
Part Code
AFS1010
Price (inc VAT)
£7.15
Qty in Stove
4
(129 available)
buy now
3
Glass kit
Part Code
AFS4585
Price (inc VAT)
£133.86
Qty in Stove
1
(4 available)
buy now
4
Gasket And Glass Clips
Part Code
AFS1361
Price (inc VAT)
£17.11
Qty in Stove
1
(84 available)
buy now
5
Arada Rope Kit 2
Part Code
ARA014
Price (inc VAT)
£35.42
Qty in Stove
1
(20 available)
buy now
6
Handle assembly
Part Code
AFS4576
Price (inc VAT)
£58.87
Qty in Stove
1
(1 available)
buy now
7
Handle (stainless steel)
Part Code
AFS4578
Price (inc VAT)
£25.69
Qty in Stove
1
(5 available)
buy now
8
Complete Fire Door
Part Code
AFS4550
Qty in Stove
1
(Please call our sales team for details)
9
Primary / secondary air slider
Part Code
AFS4575
Price (inc VAT)
£61.06
Qty in Stove
2
(3 available)
buy now
10
Air control knob
Part Code
AFS4584
Price (inc VAT)
£12.59
Qty in Stove
2
(48 available)
buy now
11
Operating tool
Part Code
AFS4583
Price (inc VAT)
£15.30
Qty in Stove
1
(12 available)
buy now
12
5" hot plate cover
Part Code
AFS4582
Price (inc VAT)
£17.14
Qty in Stove
1
(7 available)
buy now
13
Hotplate
Part Code
AFS4446
Price (inc VAT)
£34.75
Qty in Stove
1
(4 available)
buy now
14
Throat plate
Part Code
AFS4587
Price (inc VAT)
£76.79
Qty in Stove
1
(1 available)
buy now
15
Rear upper liner 393 x 197 x 25 vee cut
Part Code
AFS4597
Price (inc VAT)
£29.32
Qty in Stove
1
(Please call our sales team for details)
16

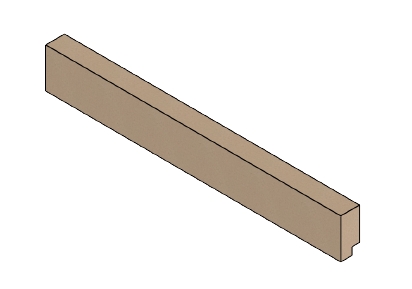

Rear lower liner liner 393 x 53 x 25
Part Code
AFS4599
Price (inc VAT)
£10.85
Qty in Stove
1
(Please call our sales team for details)
17
Side liner 235 x 183 x 50 vee edge
Part Code
AFS4598
Price (inc VAT)
£19.32
Qty in Stove
4
(4 available)
buy now
18
Base wood liner 210 x 72 x 25
Part Code
AFS4600
Price (inc VAT)
£10.07
Qty in Stove
2
(16 available)
buy now
19
Base side liner liner 205 x 55 x 50
Part Code
AFS4595
Price (inc VAT)
£10.62
Qty in Stove
2
(54 available)
buy now
20
Grate
Part Code
AFS4574
Price (inc VAT)
£83.77
Qty in Stove
1
(Please call our sales team for details)
21
Ash Pan
Part Code
AFS4563
Price (inc VAT)
£21.52
Qty in Stove
1
(15 available)
buy now
22
Side riddle arm
Part Code
AFS4580
Price (inc VAT)
£19.85
Qty in Stove
1
(14 available)
buy now
23
Fuel retainer
Part Code
AFS4590
Price (inc VAT)
£22.64
Qty in Stove
1
(2 available)
buy now
Optional Extras for Arada Holborn 5 Widescreen
1
Multifuel Kit for ECB5WS-S3 / HOLBORN5WS
Part Code
AFS4548
Qty in Stove
1
(Please call our sales team for details)
2
Direct Air Kit for for ECB5WS-S3 / ECB7-S3 / HOLBORN5-WS / HOLBORN7
Part Code
AFS4544
Qty in Stove
1
(Please call our sales team for details)
3
Heat Shield for ECB5WS-S3 / ECB7-S3 / HOLBORN5-WS / HOLBORN7
Part Code
AFS4546
Qty in Stove
1
(Please call our sales team for details)
4

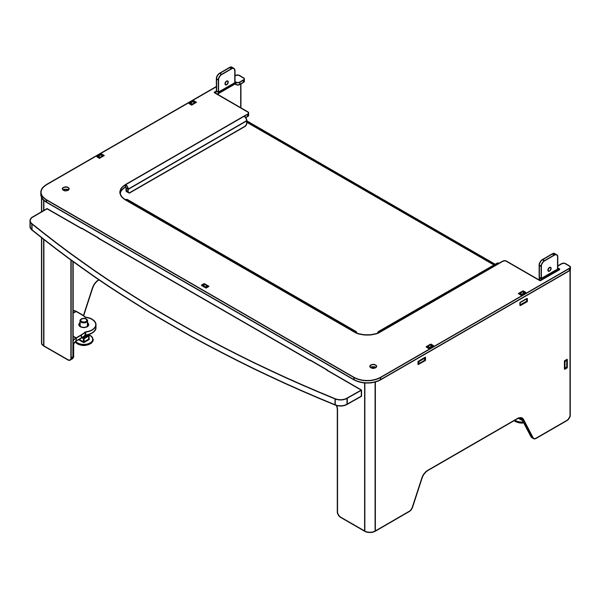

Stand for ECB5WS-S3 / HOLBORN5-WS / ECB7-S3 / HOLBORN7
Part Code
STAND-5WS/7
Qty in Stove
1
(Please call our sales team for details)
5

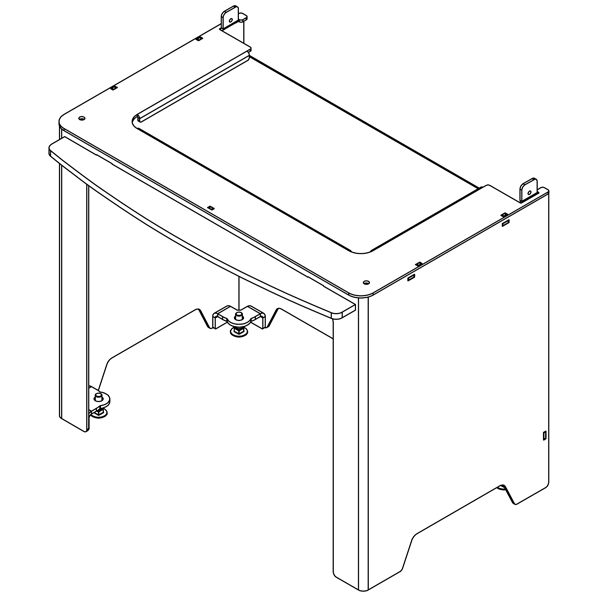

Logstore for ECB5WS-S3 / HOLBORN5-WS / ECB7-S3 / HOLBORN7
Part Code
LOG-5WS/7
Qty in Stove
1
(Please call our sales team for details)
